GAMBAS

Is a free development environment based on a Basic interpreter with object extensions, a bit like Visual Basic™ (but it is NOT a clone !). Read the introduction for more information.

http://gambas.sourceforge.net/en/main.html


CODE SAMPLE

This is a simple communications program connected to a Modem, RFID reader or wireless modem using ttyUSB0.

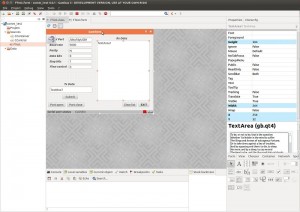

Above is the GUI layout for the app.

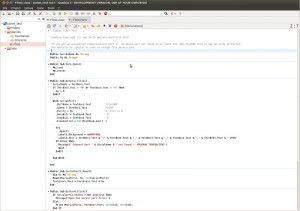

Sample of the IDE code window.

' Gambas class file

Private Sport As SerialPort
Public Pp As Byte
Public Po As Byte
Public Rxs As String

Public Sub Form_Open()
  Me.Load
  Me.Center
End

Public Sub Button2_Click()
  Sport = New SerialPort As "Sport"
  Po = 1

  If TextBox3.Text = "N" Or TextBox3.Text = "n" Then
    pp = 0
  End If

  With Sport
    .PortName = TextBox1.Text
    .Speed = TextBox2.Text
    .Parity = Pp
    .DataBits = TextBox4.Text
    .StopBits = TextBox5.Text
    .FlowControl = Val(TextBox6.text)
  Try
    .Open()
    Label9.Text = TextBox1.Text & ":" & TextBox2.Text & "," & TextBox3.Text & "," & TextBox4.Text & "," & TextBox5.Text & "  OPEN"
    Label10.Background = &H00FF00&
    If Error Then
      Message(" Port " & TextBox1.Text & " not found -- TERMINATING PROGRAM")
      Quit
    Endif
  End With

End

Public Sub Sport_Read()
  Dim Rx As String
  Read #Sport, Rx, Lof(Sport)
  Rxs = Rxs & Rx
  If Rx = Chr$(13) Then
    TextArea1.Text = TextArea1.Text & Rxs
    Rxs = ""
  End If
End

Public Sub Button1_Click()
  If Po = 0 Then
    Message("Open the PORT")
  Else
    Print #Sport, Textbox7.Text; Chr$(13)
  End If
End

Public Sub Button3_Click()
  Sport.Close
  Label10.Background = &HFF0000&
  Label9.Text = "CLOSED"
  Po = 0
End

Public Sub Button4_Click()
  TextArea1.Clear
End

Public Sub Button5_Click()
  EndIt()
End

Public Sub Form_Close()
  EndIt()
End

Public Sub EndIt()
  Try
    Sport.Close
    Quit
  If Error Then
    Quit
  Endif
End
