Universal Joystick controller.

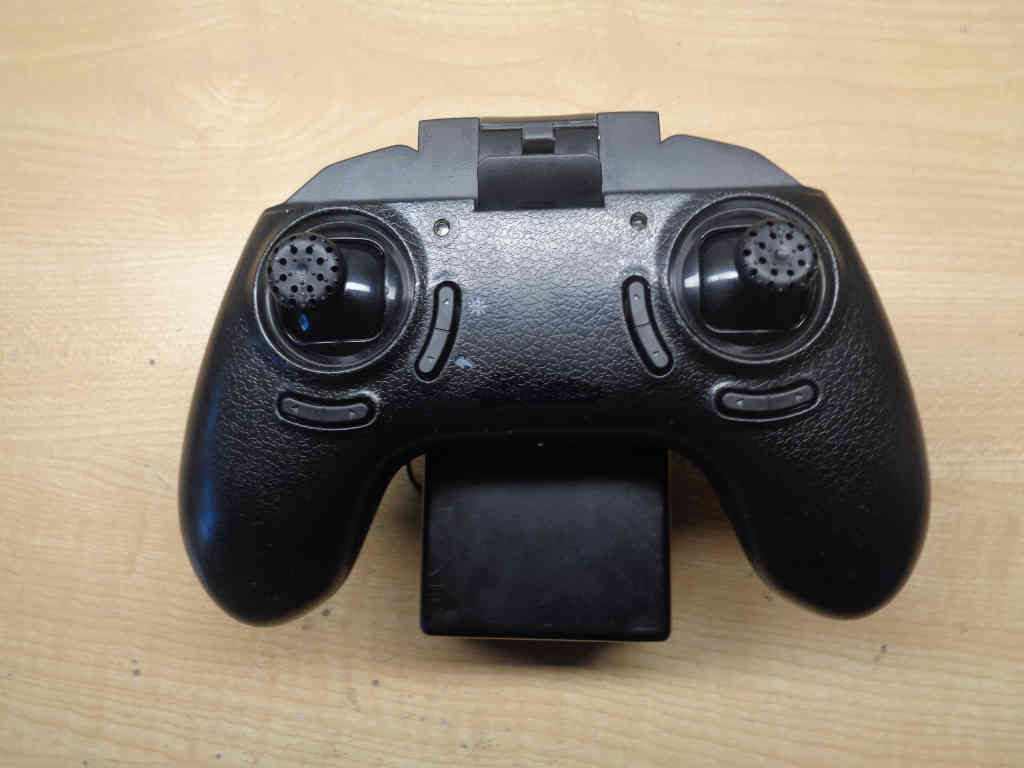

A universal Uno controlled wireless joystick controller.

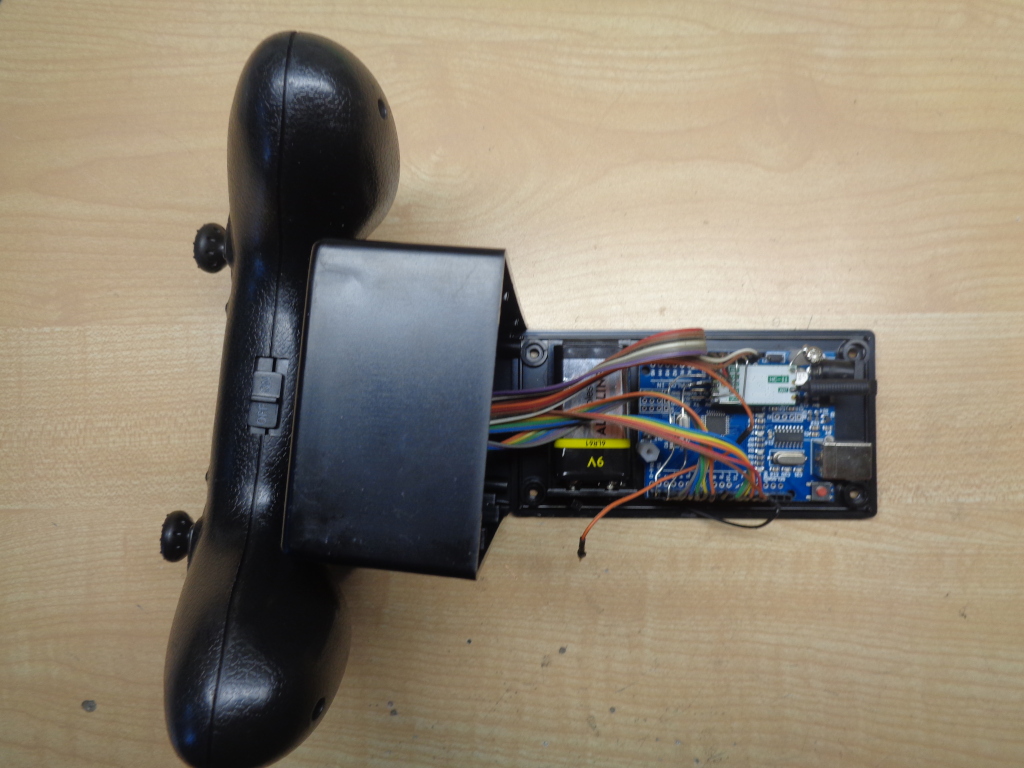

The Uno, battery and modem are mounted in a black plastic box attached to the
bottom of the controller.

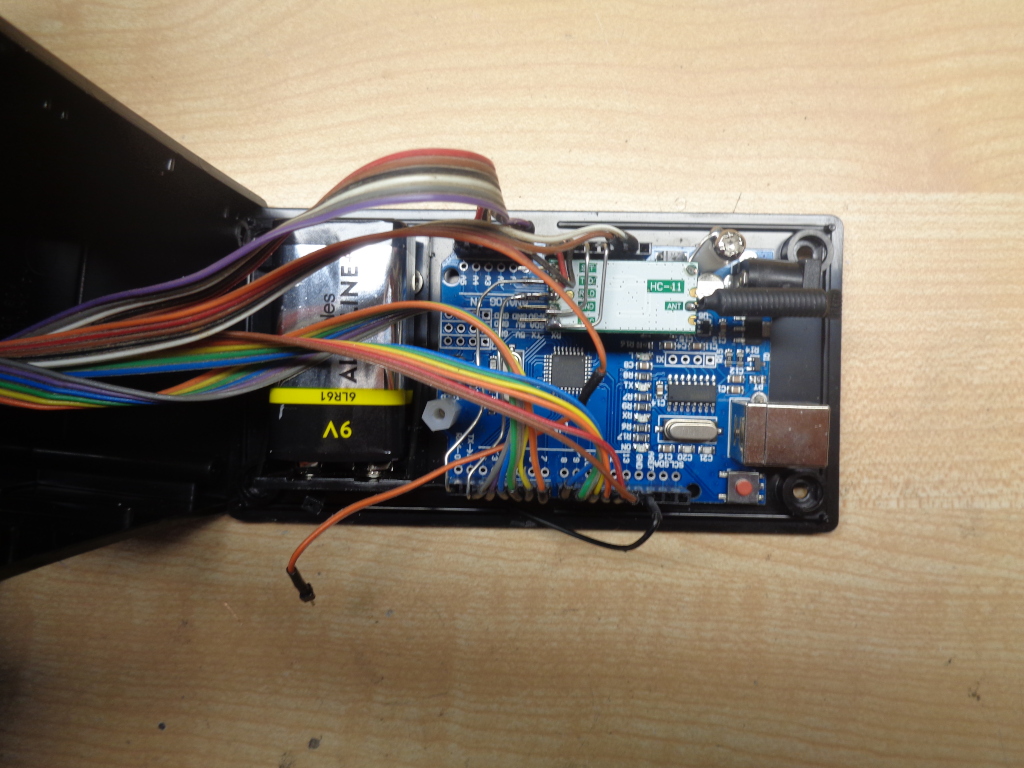

Controller showing the Uno, battery and modem.




Uno layout.


Link to the Controller schematic.

Communication protocol is simple ASCII strings. The 433 mHz modem set up is.

9600 Baud
N
8
1

Link to partial "C" code snippet.
